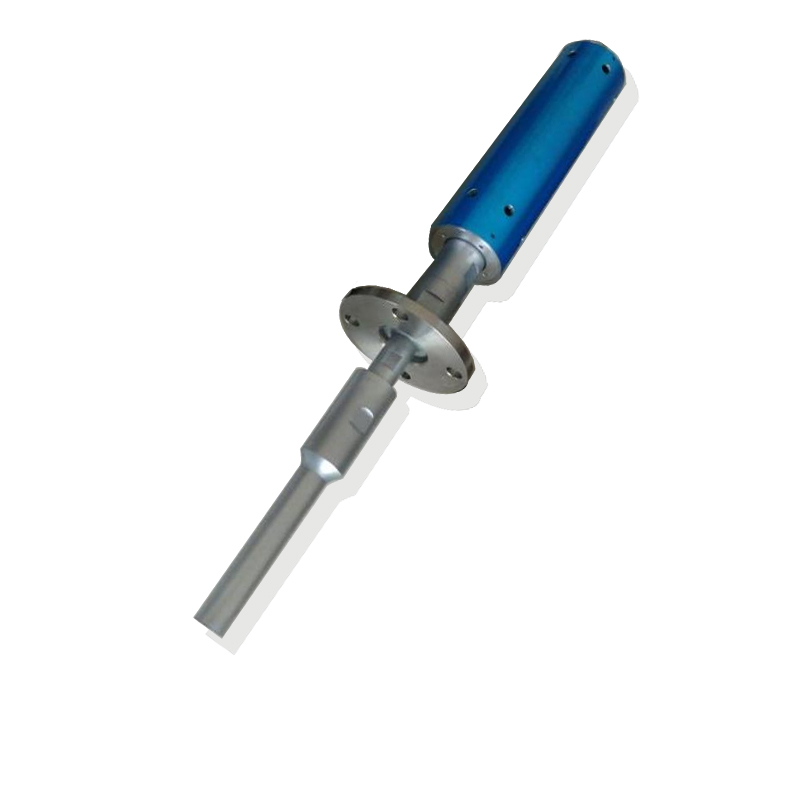

Plant Essential Oil Ultrasonic Extraction Machine

Ultrasonic extraction, also known as ultrasonic extraction, uses the mechanical effects, cavitation effects and thermal effects of ultrasonic waves to extract biologically effective components by increasing the velocity of the medium molecules and increasing the penetrating power of the medium. Under the action of cavitation formed by ultrasonic energy, a large number of bubbles will be generated in the liquid. Small bubbles will gradually grow and increase with the ultrasonic vibration, and finally burst and split instantly, and the split bubbles will continue to grow and burst in a continuous cycle. When these small bubbles collapse rapidly, high temperature and high pressure are generated in the bubble, and because the liquid around the bubble rushes into the bubble at high speed, a strong local shock wave is generated in the liquid near the bubble, causing the plant cell wall and the entire organism to rupture, and the whole The rupture process is completed in an instant. In addition, the mechanical vibration of ultrasonic waves also generates heat, which leads to an increase in the temperature of the medium itself and the tissues of traditional Chinese medicine plants, which increases the dissolution and separation speed of the effective components of traditional Chinese medicine plants. The extraction rate can reach 95%, this is a new extraction technology.

Features

1. The ultrasonic system has multiple protections and is easy to operate

2. Using the closed-loop ultrasonic system, stable power output, strong anti-interference ability

3. High extraction rate: up to 95% in a single extraction

4. Low extraction temperature: the best temperature for ultrasonic extraction of Chinese medicinal materials is 40-60℃

5. Short extraction time: Ultrasonic enhanced traditional Chinese medicine extraction usually takes 24-40 minutes to obtain the best extraction rate, which is 1/3 of the ordinary extraction method.

5. The liquid medicine has few impurities, and the effective ingredients are easy to separate and purify

6. Low cost, no need to change the customer's existing production equipment and process flow to complete the upgrade of ultrasonic mixing equipment

Industry Application:

Biological industry: petroleum, natural plants, polysaccharides, flavonoids, alkaloids, polyphenols, organic acid oils extraction

Laboratory applications: cell disruption, material dispersion (suspension making) and coagulation.

Chemical industry: textile process and dyeing process, batik process, defoaming.

Water treatment: Pollution of water quality, vibrating algae and marine organisms in the manufacturing industry.

Graphene: Graphene particles, graphene nanoparticles produce.

Food and cosmetics industry: wine aging, cosmetics particles refined
