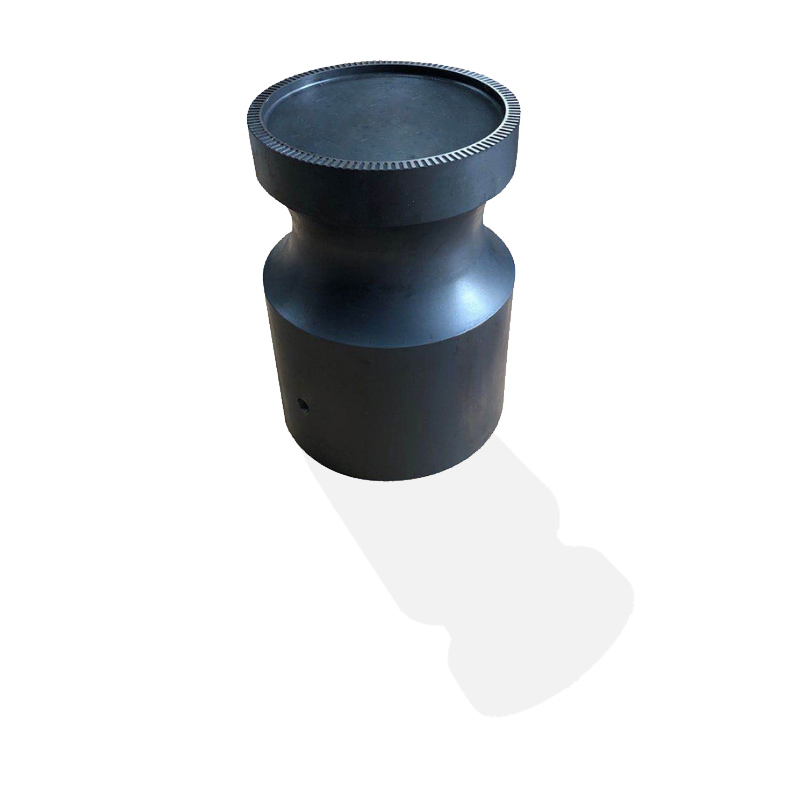

15KHz Round Ultrasonic Steel Horn for Filter Mask

15KHz Round Ultrasonic Steel Horn for Filter Mask
The harden steel horns have good wear properties ,but do not have the tensile strength of aluminum or titanium .Usually it's used for low gain applications such as metal insertion,glass filled parts and plunge cutting application etc.

This shape and size steel ultrasonic horn could be used for ultrasonic punching,ultrasonic cutting ,ultrasonic spot welding,ultrasonic embossing,ultrasonic quilting ,3-ply face mask making machine.

More application welcome to contact with us!

(Note:Above list size just one part ,also we can according to your application to design the size )

Ultrasonic horn also named as ultrasonic sonotrode, ultrasonic welding head,ultrasonic waveguide,ultrasonic probe.It’s transmit the ultrasonic vibration energy to plastic part and with pressure to reach welding result .Usually it’s made of high grade material like Aluminum ,Titanium and tool steel .

PUTSONIC design and manufacture high quality ultrasonic horn and fixtures for all brand ultrasonic welding machine like Herrmann,BRANSON,Rinco,Dukane,Telsonic,Mecasonic,KKS etc .all ultrasonic horns are design with FEA simulation program which can let our engineer knows the vibratory action of horn before manufacturing .Usually we use the Solidworks,Pro-E,UG,AUTOCAD etc software . We suggest the customer send us the stp format for the application files .

Service we offer:

• Design and manufacture ultrasonic welding horn and fixture , Available frequency :15KHz,18KHz,20KHz,30KHz,35KHz,40KHz,60KHz,70KHz
• Refurbish ultrasonic horn like repair horn surface ,retuning the frequency
• Replace stud/screw

Application:

•It is suitable for welding the thermal plastic such like: HDPE、PP、PE、ABS、PVC、PC、EVA、PMMA、PS、PP、PBT、PETG, and other plastic, also for fiber cotton, chemical fiber, metal hardware in the aspects of riveting, cutting, sealing, welding, spot welding,embossing,fixed position for files, melt welding
•According to customer needs to replace riveting, welding, embedded, removing process, relative to other traditional process (such  as adhesives, hot welding or screw connection), has high production efficiency, good weld quality, environmental protection and energy saving advantages

Various Plating to protect the horns

• Anodize(aluminum horns only)
• TiN (titanium and steel horns only)
• Carbide Spray
•       Chrome Plating (aluminum horns only)
