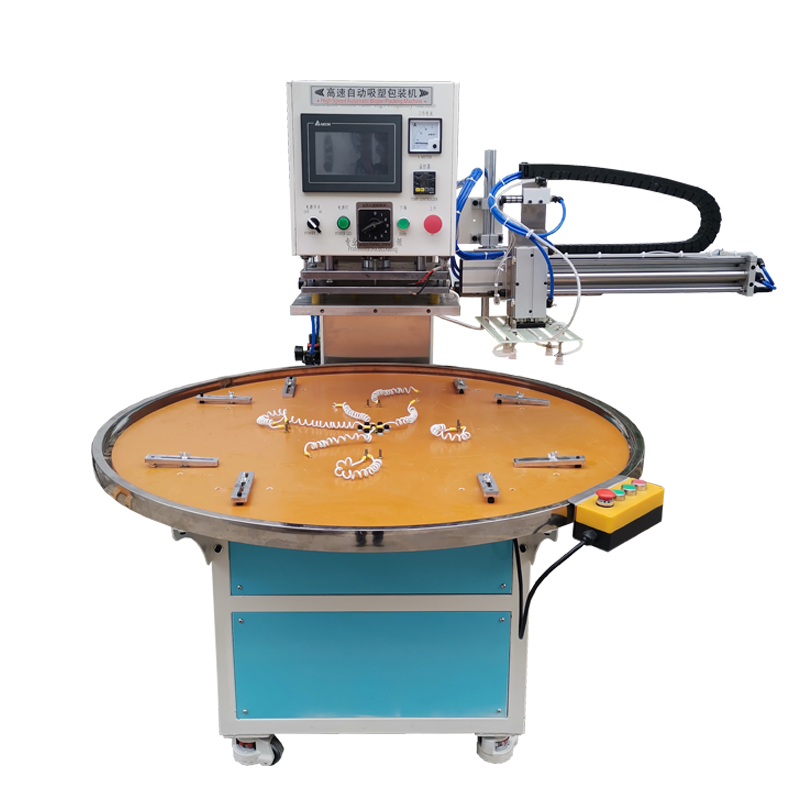

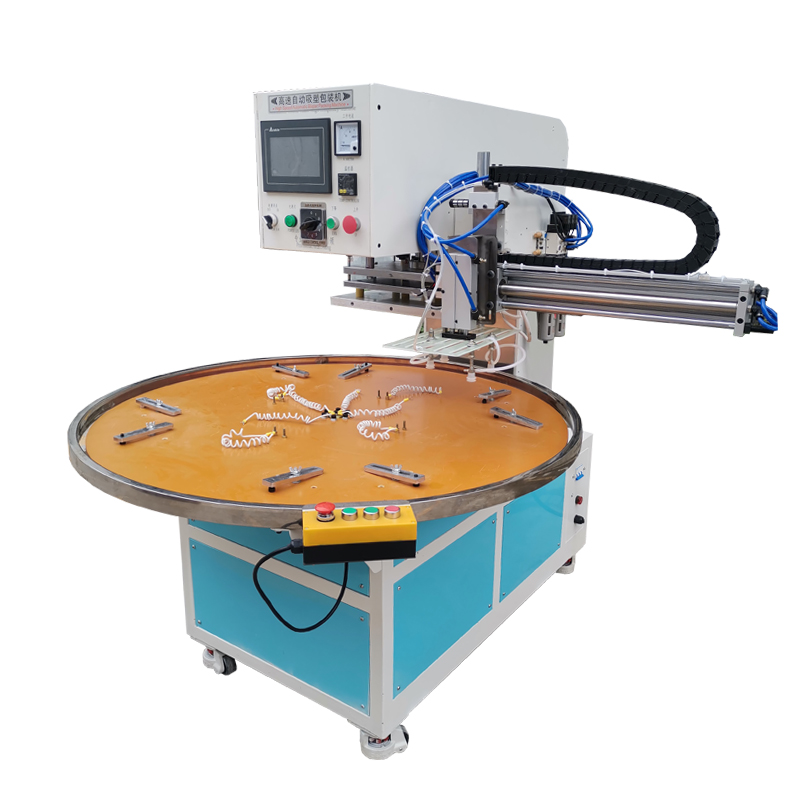

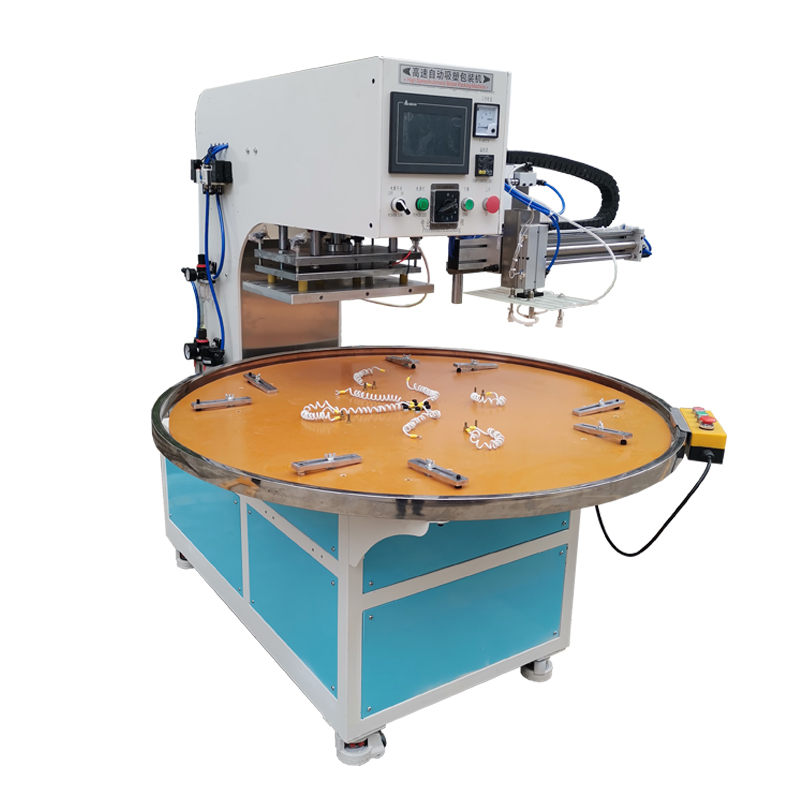

This blister packing machine is with 4 station automatic turntable design , and one 1.2 meters round table installed .Also you can according to your needs to add the robot arm auto take out the welded products.
Features:
1.With human-machine interface ,touch screen control. It's more conveient
2.With PLC control and 4 stations divder .The production capacity is higher
3. Adopt the high quality components ,it's more stable and life is longer
4. The machine is with over current sparking protection system ,it protects the life of mould and oscillation tube.
5. Robot arm optional
Specification :
| Model | PUT-8KW-4RA | PUT-10KW-4RA |
| Voltage | 380V,3 Phase | 380V,3 Phase |
| Frequency | 27.12MHz | 27.12MHz |
| Power | 8000W | 10000W |
| Output power | 15KVA | 18KVA |
| Round table size | Φ1200mm | Φ1200mm |
| Oscillation tube | E3069 | E3069 |
| Max. pressure | 0-7 bar | 0-7 bar |
| Temperature range | 0-200 degree adjustable | 0-200 degree adjustable |
| Upper plate size | 300*450mm | 300*450mm |
| Hole mounting space | 430mm | 430mm |
| Weld time | 0-10 sec | 0-10sec |
| Weight | 500KG | 530KG |
| Dimensions | 1300*1600*1900 mm | 1300*1600*1900 mm |
Application :
This machine is suitable for PVC,PET,APET,PETG,HPET,GAG etc double side blister packing .also suitable for blister PVC with card board packing .It's widely used for U-disc , USB data cable ,battery,brushtooth,plastic toys etc products packing.
