We can according to your needs and application offer different type replacement booster for BRANSON all brand machine like 900 series ,2000 series etc .If you are interested in ,welcome to contact with us .

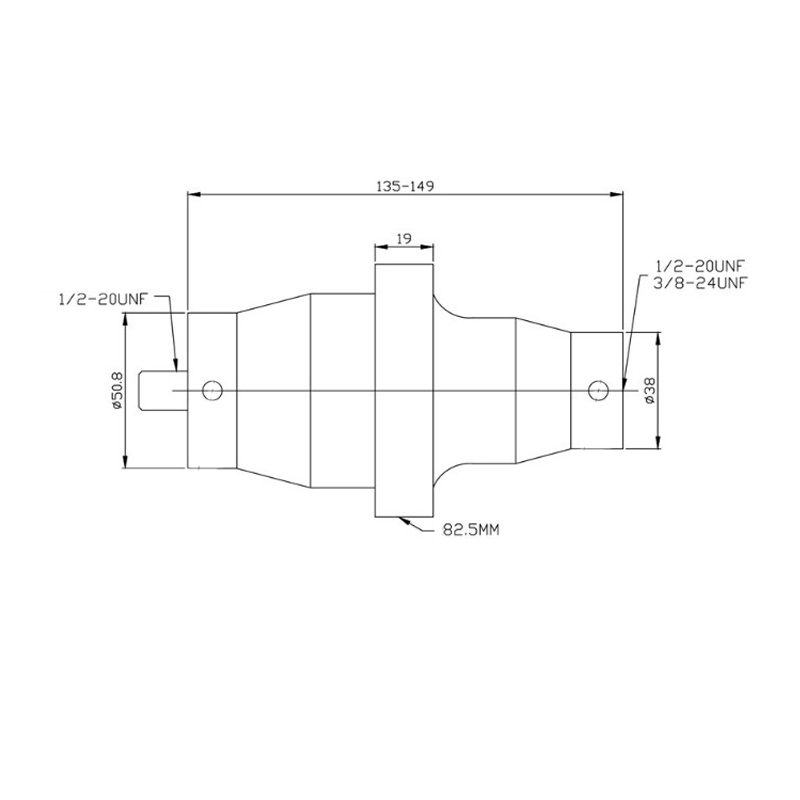

Check mounting ring and stud sizes to be sure
What is a booster?
A booster horn is a one-half-wavelength long resonant section made of aluminum or titanium.
It modifies the amplitude of vibration applied to the horn.
Where is it located?
The booster is mounted between the converter and horn.
How does it work?
To provide an amplitude change, the booster will have different diameters on either side of its center or nodal point. A smaller diameter at the end attached to the horns, means that the boosters horn is amplitude increasing. A greater diameter at the end attached to the horn means the booster horn is amplitude decreasing.
Clamped at their nodal point, booster horns provide rigid support for the transducer ,converter/horn assembly.
900/2000 S ULTRASONIC BOOSTER
Color Amplitude Ratio Material EDP No. (1/2") EDP No. (3/8")
Purple 1:0.6 Aluminium 101-149-055 101-149-090
Green 1:1.0 Aluminium 101-149-051 101-149-093
Gold 1:1.5 Aluminium 101-149-052 101-149-092
Silver 1:2.0 Aluminium 101-149-053 101-149-094
Purple 1:0.6 Titanium 101-149-060
Green 1:1.0 Titanium 101-149-056
Gold 1:1.5 Titanium 101-149-057
Silver 1:2.0 Titanium 101-149-058
Black 1:2.5 Titanium 101-149-059
Aluminium BRANSON type Ultrasonic Booster
